System Architecture & Scalability Information

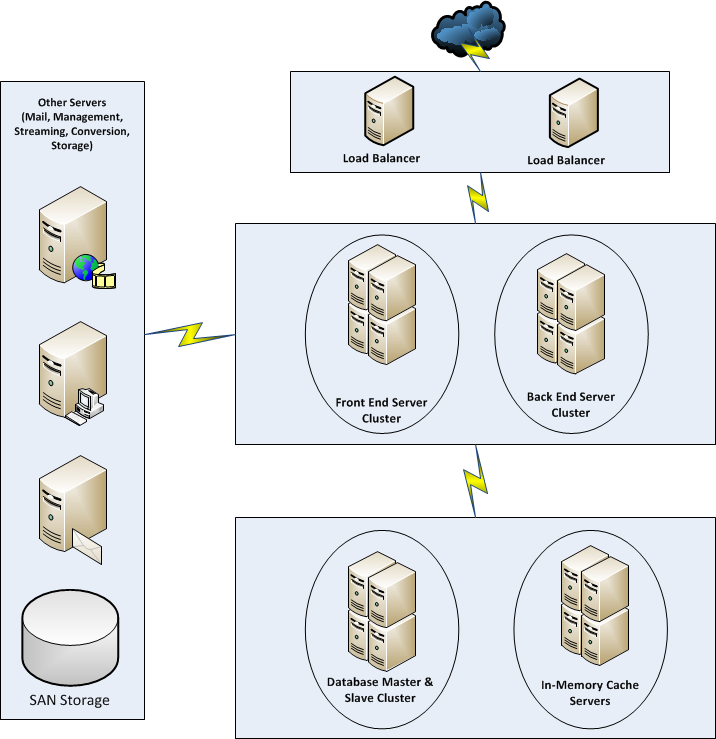

MangoApps setup can scale horizontally and vertically. We have tested the system with 1 Million simultaneous users (one person being followed by over 1M users). The diagram below describes the overall setup.


Please contact us for detailed system architecture, systems requirements, specifications and any other detail that may help you make an informed decision.


Technical Specifications:

Security:
A wide range of options are available to address security needs of organizations from healthcare to government.
  • Private cloud and on-premise deployment option
  • SAS-70, Type 2 data center
  • Safe-Harbor compliant
  • All data is encrypted during transit (256-bit SSL)
  • At rest encryption of stored data
  • Granular, application level, security focused configurations. Learn more
  • Fully automated configuration management
  • Data retention, system backup and disaster recovery process and policy
  • Active directory based user authentication
  • Detailed user and system access logs
  • Tools for intrusion detection
  • Information access policy
  • MangoApps has been tested and can pass security vulnerability scans and requirements (for example: QualysGuard)
  • Employee background check
On-Premise Deployments:
Ultimate security for enterprise with behind-the-firewall deployments.
  • Industry-standard OVF 1.0 virtual machine (can be deployed on anything that supports the standard).
  • On-demand, zero-downtime, software upgrades over a secure VPN link
  • Number of required nodes/hardware depends on size and nature of the deployment. Contact us for recommended server setup guide
  • Download The MangoApps Appliance Now
Private Cloud Deployments:
SAS-70, Type II certified, redundant datacenter
  • Two different, SAS-70, Type II certified datacenters
  • High availability setup spread between the two datacenters to ensure 99.99% SLA
  • Automated, zero-downtime, configuration and application upgrades
  • Physical and Logical separation between customer data
  • Regular security and systems audits
  • Completely managed
  • Contact us for additional details
Typical Hardware & OS:
MangoApps scales both horizontally and vertically. A typical hardware node has the following specifications:
  • Ubuntu 10.04 LTS
  • 16+ GB RAM
  • 100+ GB, fast, raided HD
  • Quad core CPU
Required Ports: **
** If you have enabled email, active directory or other system integrations, ports configured for those services must also be open on your server so that our servers can reach them.
  • HTTP: 80
  • HTTPS: 443
  • XMPP: 5222 & 5223
  • RTMP: 1935
Technologies: MangoApps is built from the ground up using latest & greatest open technology stack (RoR, Java, Linux) to bring social software innovations to you faster & cheaper.
  • Ruby On Rails
  • J2EE
  • MySQL
  • jQuery Javascript Framework
  • Apache/Nginx
  • Memcached/MemcacheDB
  • HAProxy, Monit, Nagios, OpenVPN, Postfix and few other, high quality, open-source systems
Backups:
MangoApps private cloud customers can configure backup schedule from admin interface. In addition, all data is immediately exportable via secure download at any time XML format from the admin interface.
  • Regular, Scheduled backups
  • One-time backups
  • XML Format
Integrations:
Connect, share content, import data, and extend functionality through smart integrations with:
  • Active Directory
  • SharePoint 2007 - 2010 and 40+ other content repositories
  • Outlook 2007 - 2010
  • Facebook
  • Twitter
  • 2-way email
  • SAML + Google Apps Auth
  • Lync/OCS 2-way integration (in lab)
  • Exchange Calendar & Tasks integration (in lab)
  • Deeper GoogleApps integration (in lab)
  • Robust REST-based API sets for other system integrations


End-User Focused Details:

Browsers:
MangoApps is compatible with all the modern web browsers including:
  • Microsoft Internet Explorer 8.x and higher
  • Mozilla Firefox 4.x and higher
  • Apple Safari 4.x and higher
  • Google Chrome 8.x and higher
  • Opera 10.x and higher
Mobile: **
Native, feature-rich, mobile clients are available for all the popular mobile platforms including:


** Mobile access can be enabled or disabled per platform from the admin interface.
  • iPhone
  • iPad
  • Blackberry
  • Android
  • Windows Phones
Desktop Application: **
Adobe AIR based application available for platforms including:


** Desktop client access can be enabled or disabled from admin interface.
  • Windows 7
  • Windows XP
  • Windows Vista
  • MacOS
  • Linux
Real-time notifications:
Activity notifications are updated in real time (less than 3 seconds) using push-style architecture across all devices and platforms for the following:
  • Group messages
  • Online presence
  • Status update
  • Project messages
  • Task updates
  • Document Activity
  • Idea Posts
  • Wikis & Blogs
  • Event Planning
  • And more...

Contact Us

Please Contact Us to set up a Demo, inquire about Pricing or ask any other questions you may have.

Modular Architecture

MangoApps modular architecture allows for easy customization.

Download MangoApps Appliance

MangoApps enterprise appliance an industry-standard OVF 1.0 virtual machine. This means it can be deployed on anything that supports the standard (for e.g. VMware ESX).
